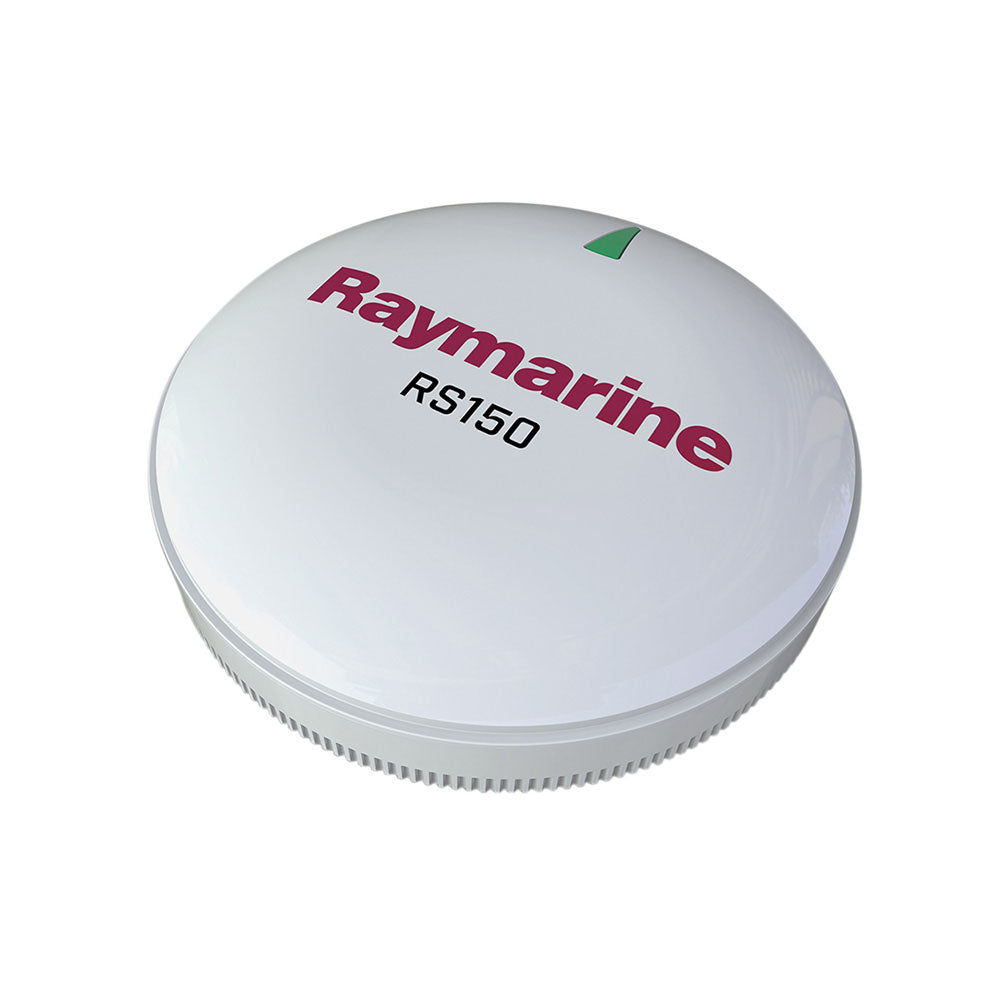

Raymarine Raystar 150 GPS/Glonass Antenna and Pole Mount

Features

• 72-channel GPS receiver
• Fast 10Hz position updates
• Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS EGNOS MSAS and GAGAN support
• A GNSS receiver with GLONASS compatibility
• Low power consumption: 30mA (1 LEN)
• SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
• Designed for low profile surface mounting or optional pole mounting

Specifications

• Nominal supply voltage 12V D.C. Powered by N2K bus
• Operating voltage range 8 - 32V DC
• Power consumption 30 mA max (NMEA LEN = 1)
• Operating temperature -13ºF to 131ºF (-25ºC to +55ºC)
• Relative humidity max 93%
• Waterproof IPx6/7
• Supported connection protocols SeaTalkng: NMEA 2000 (certified) (via DeviceNet adaptor)
• Sensitivity High sensitivity - acquisition down to -163dBm
• No. of channels 72
• Positioning System GPS & GLONASS
• Satellite Differential Type WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)
• Differential acquisition Automatic
• Position accuracy (95%) <15m
• Position accuracy with SDGPS (95%) <5m
• Speed accuracy (95%) <0.3kt
• Time to first fix from cold start <2 minutes (< 45 seconds typical)
• Time to first fix from hot start < 8 seconds -72 hour hold up battery allows for hot start
• Geodetic Datum WGS84
• Mounting Surface/rail/pole

The RS150 GPS is a high performance 72-channel remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.

The RS150 is supplied from SMG with additional antenna pole mount included.
